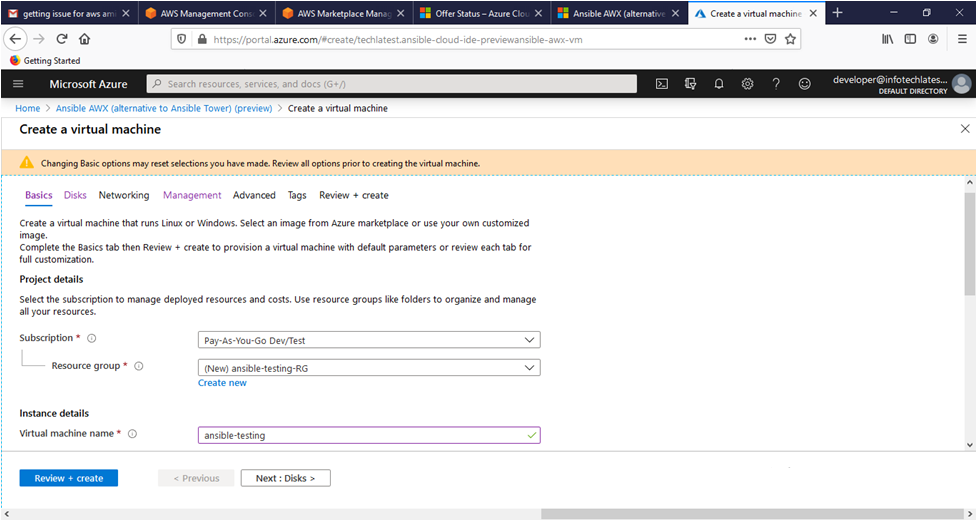

Select a Region where you want to launch the VM(such as East US)
Note: If you see “This image is not compatible with selected security type. To keep trusted launch virtual machines, select a compatible image. Otherwise change your security type back to Standard” error message below the Image name as shown in the screenshot below then please change the Security type to Standard.
Optionally change the number of cores and amount of memory.

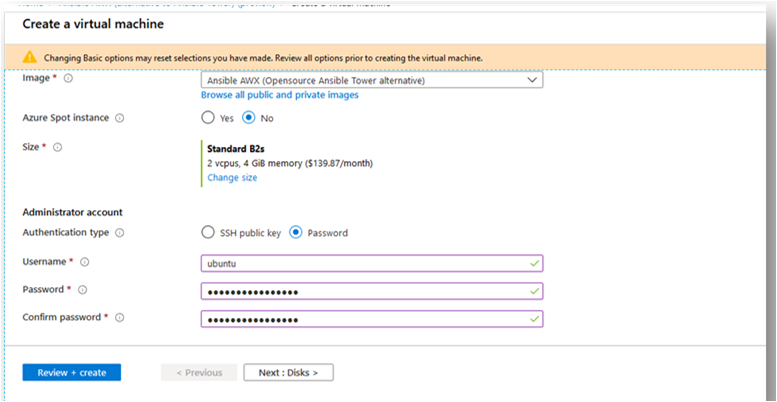

Select the Authentication type as Password and enter Username as ubuntu and Password of your choice.
Optionally change the OS disk type.
Optionally change the network and subnetwork names.Be sure that whichever network you specify has ports 22 (for ssh), 3389 (for RDP) and 80 (for HTTP) exposed.
Optionally go to the Management, Advanced and Tags tabs for any advance settings you want for the VM.
Click on Review + create and then click on Create when you are done.
Virtual Machine will begin deploying.
A summary page displays when the virtual machine is successfully created. Click on Go to resource link to go to the resource page. It will open an overview page of virtual machine.
In the left navigation pane, select Run command, select RunShellScript and enter following command to change the password of the vm .
sudo echo ubuntu:yourpassword | chpasswd
Now the password for ubuntu user is set, you can connect to the VM’s desktop environment from any local windows machine using RDP protocol or local linux machine using Remmina.
To connect using RDP via Windows Machine, first note the public IP address of the VM from VM details page as highlighted below
Then From you local windows machine, goto “start” menu, in the search box type and select “Remote desktop connection”.
In the “Remote Desktop connection” wizard, copy the public IP address and click connect

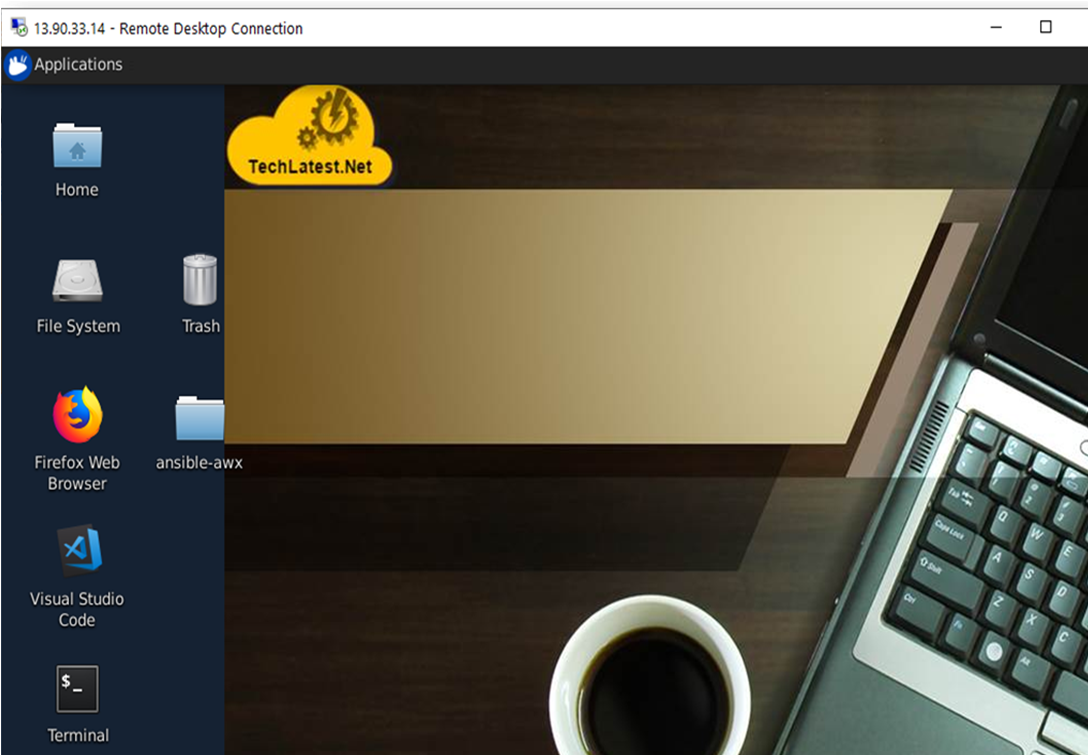

This will connect you to the VM’s desktop environment. Provide the username (e.g “ubuntu”) and the password set in the step4 to authenticate. Click OK
Now you are connected to the out of box Ansible AWX(alternative to Ansible Tower) environment via Windows Machine.
To connect using RDP via Linux machine, first note the external IP of the VM from VM details page,then from your local Linux machine, goto menu, in the search box type and select “Remmina”.
Note: If you don’t have Remmina installed on your Linux machine, firstInstall Remmina as per your linux distribution.
11. In the “Remmina Remote Desktop Client” wizard, select the RDP option from dropdown and paste the external ip and click enter.
12. This will connect you to the VM’s desktop environment. Provide “ubuntu” as the userid and the password set in above reset password step to authenticate. Click OK
13. Now you are connected to out of box Ansible AWX(alternative to Ansible Tower) environment via Linux machine.
For connecting via Web Interface, SSH to the VM as shown in Step 5 and run below command-

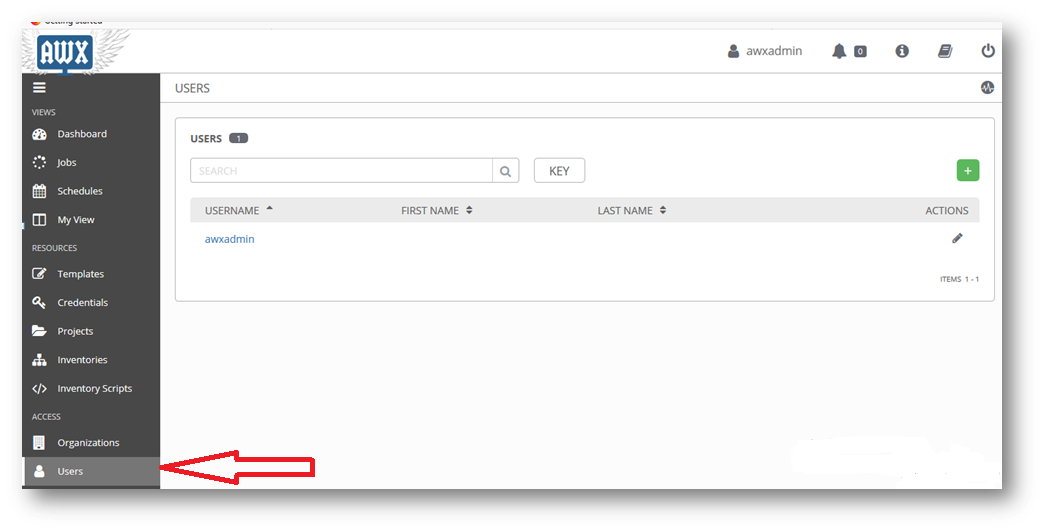

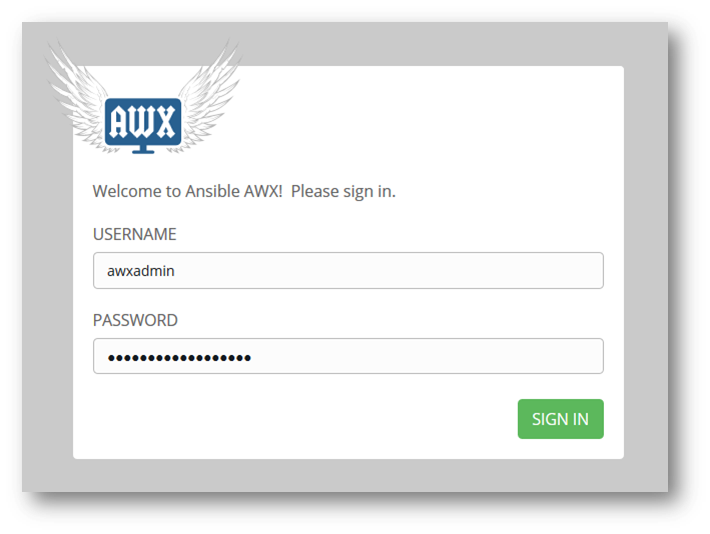

Login to the web interface by opening the url http://your-external-ip in your browser

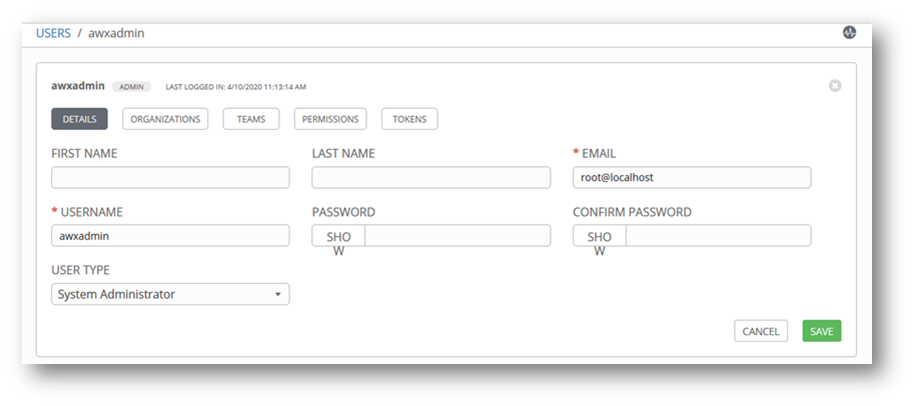

Use admin as username and auto-generated password
Note: If Ansible AWS Web Interface is not coming then please check the container status by running below command in Terminal.
sudo docker ps -a
If the output shows containers in Exited State then please restart the container by running below command and access the Ansible AWS Web Interface after few seconds.
